Modder East adopts new emulsion system

Gold One International’s Modder East mine has rolled out an innovative infrastructure to use emulsion explosives for all 70 of its underground narrow-reef stope panels, as part of its strategy to reduce its cost per tonne mined
Modder East adopts new emulsion system Modder East adopts new emulsion system Modder East adopts new emulsion system Modder East adopts new emulsion system Modder East adopts new emulsion system

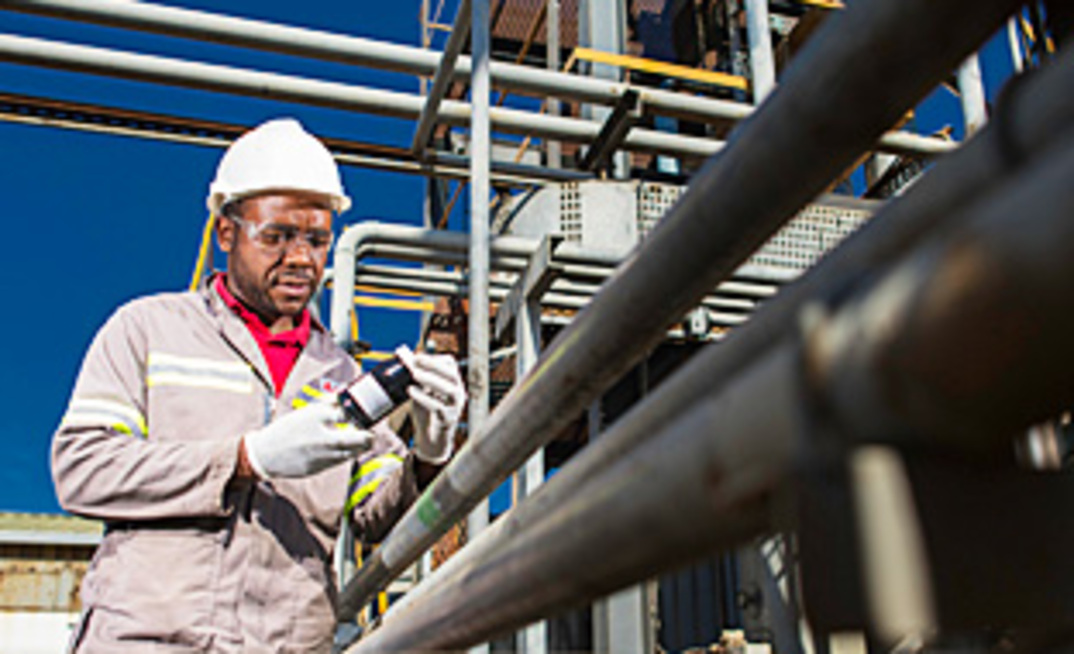

The rapid reloading system was developed with BME over the past three years

Staff reporter

Developed and installed in partnership with blasting company BME over the past three years, the rapid reloading system includes what the companies claim is the world’s deepest vertical emulsion pipeline of 318m to deliver emulsion from surface to storage tanks underground. Used with BME’s narrow-reef pump technology, this system has allowed Modder East to move away from the use of cartridge explosives and fully convert to BME’s emulsion explosives.

“The new arrangement will allow us to achieve our campaign goal for the coming year of a 0.8m advance per panel per day – a substantial improvement on the 0.65 metres we used to average,” said James McArdle, explosives and technical manager at Modder East. “The cost savings and productivity improvements convince us that this technology will be the only way for mines to go in the future.”

Specialised transporters in the haulages are filled with BME’s Megapump emulsion from the underground tanks and delivered to re-filling stations near the stope face, from where the BME Minicharger portable charging units (PCUs) are filled.

McArdle adds: “Our crews are receiving intensive training to further improve their drilling discipline, and the improved results are coming through.”

He said the increase in the daily advance rate could generate additional gold mined per month.

“The beauty of using this emulsion system includes the time saved to get the product underground, as well as the efficiencies gained by not having to manually manage explosive cartridges – which are also closely regulated for safety and security reasons,” said McArdle.

The emulsion-filled bags, or bladders, that fit onto the hand-held Minichargers weigh 18kg each, making them lighter and easier to carry than the cartridge boxes traditionally moved from surface to the stope face for blasting.

The handling and storage of emulsion is much less onerous than cartridges as it is classified as a 5.1 oxidiser (rather than an explosive) and is only sensitised when actually inside the drill-hole; this also eradicates theft.
